Urban Arrow Steering Joint V2

This steering joint is used on all post-2022 Urban Arrow Family bikes. These can be recognised because the steering tube continues LEFT under the bike. And is connected LEFT on the front fork with a ball head.

This steering mechanism of the Urban Arrow has been improved.

1) Fewer parts

2) Higher safety

3) Easier to adjust

Maintenance:

After having ridden a few thousand kilometres on your Urban Arrow, larger maintenance will sometimes be required.

There may be play in the ball joint LEFT of your front fork or at the steering joint, which is the steering mechanism at the bottom of the bike under the handlebars.

You can detect play if you hold the front wheel and can keep moving the handlebars back and forth.

For the technicians among us:

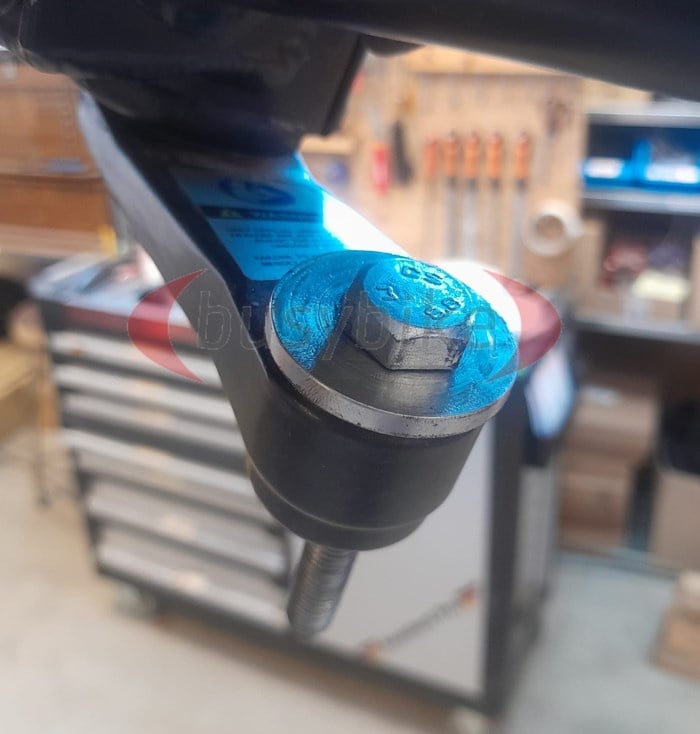

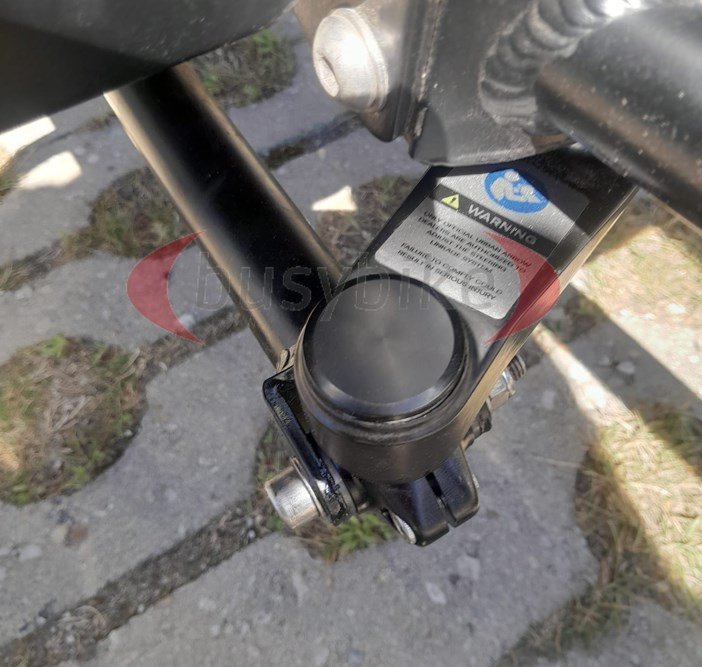

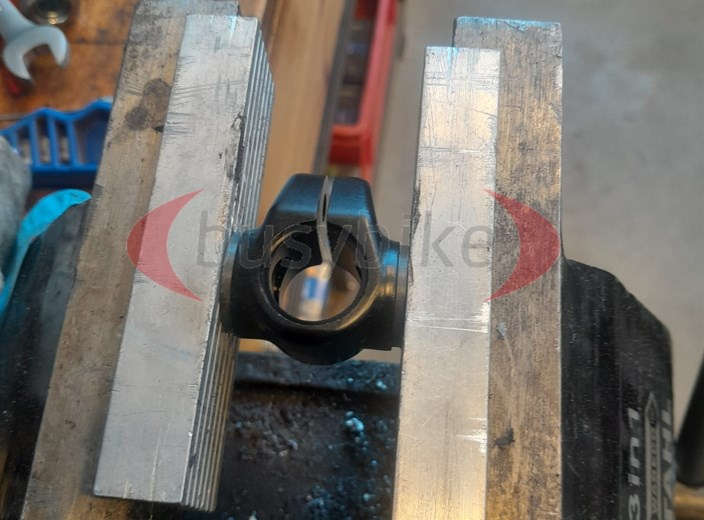

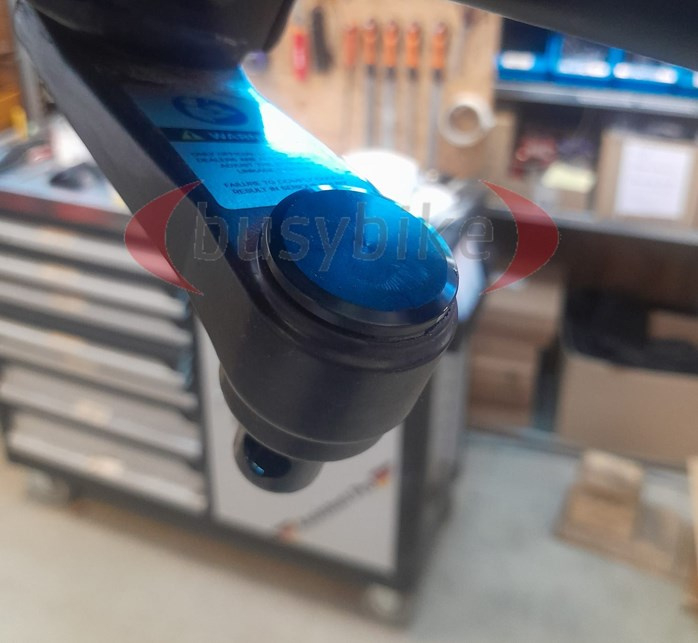

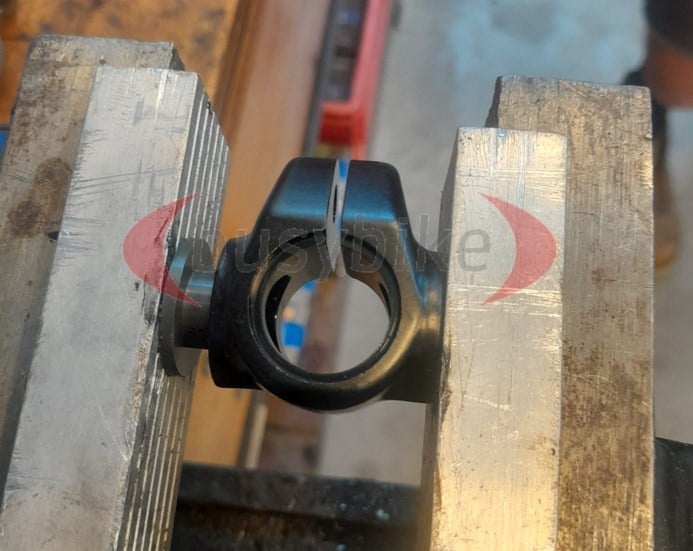

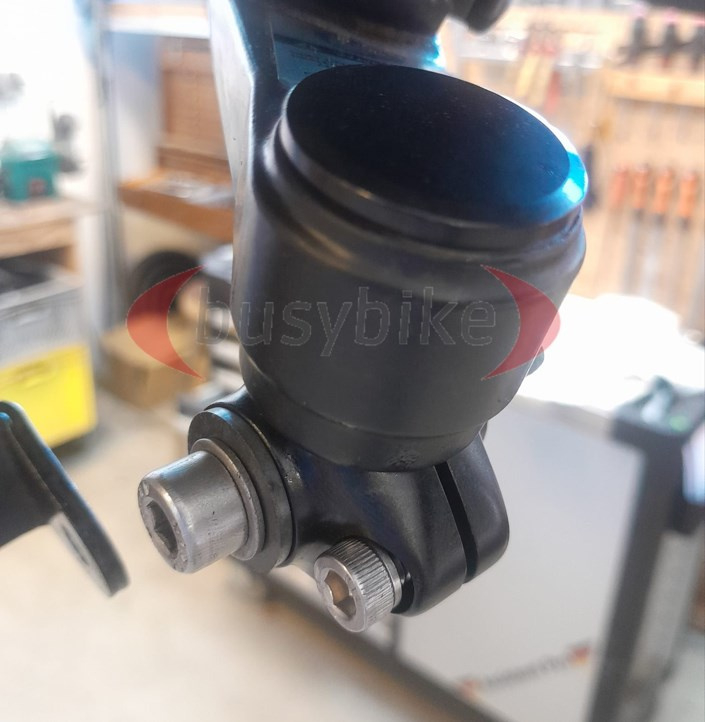

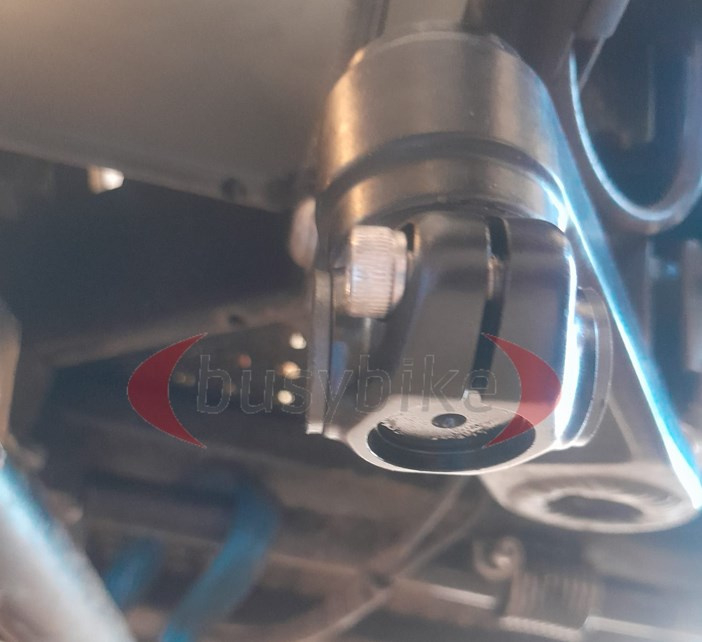

The last pictures show how to assemble the various parts.

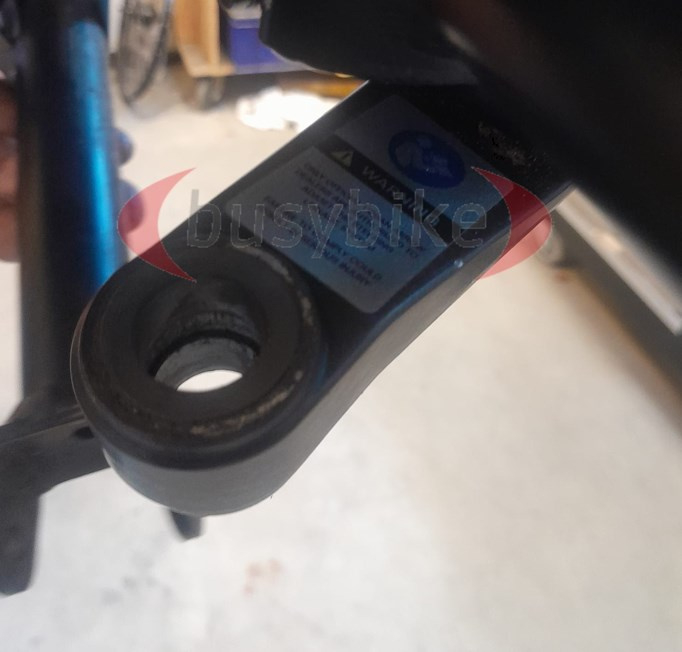

Among other things, pressing the slide bearings.
