Bicycle trailer flatbed 80_240

Item 3 of 4
€ 1.749,00 (including VAT)

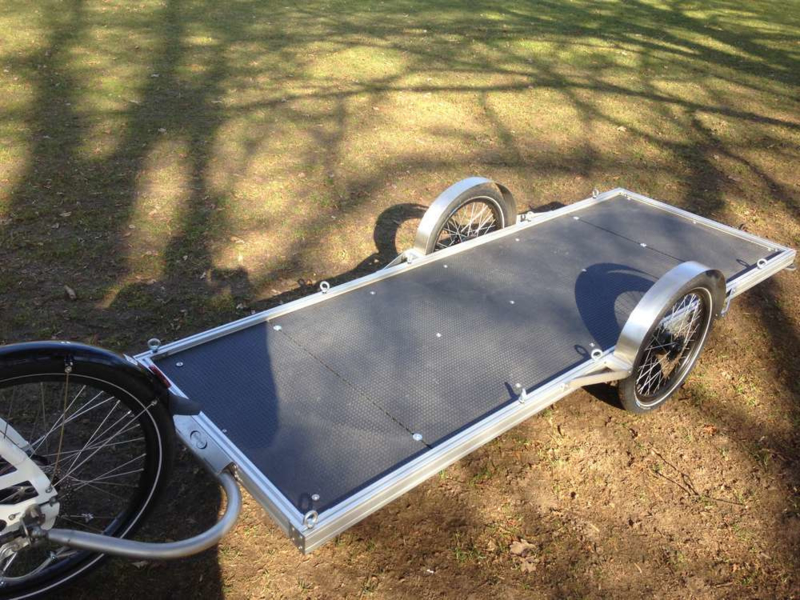

Solid aluminum bicycle trailer designed by Busybike.

The innersize between the aluminium profiles is 81cm x 241cm.

The trailer is mainly constructed of aluminium and stainless steel parts.

This system is very flexible. With sliding nuts, it's easy to connect for example attachment eyes, boxes or bill boards on the frame.


The price for this basic trailer includes:

- the hitch and bicycle frame connector

- the aluminium systemprofile frame

- 2x 20 inch wheels radially or cross spoked

- 2 little wheels to roll and park the trailer at the rear end

- complete assembled, in case of shipping some parts will be dismounted and shipped as separated part.



By choosing several options you can create your own trailer.

All trailers of Busybike are designed for Euronorm sizes. So crates having a bottom area of 40cm x 60cm fit in the frame.

Specification Description
Length 247 cm
Width 102 cm
Height 58 cm
Barcode 0019900112
net weight kg 35
specification - Dimensions platform: 167cm x 67cm (outer), 161cm x 61cm (inner)
- tubing: aluminium system profiles
- connection parts: mostly stainless steel brackets and plates
- axel 20inch wheels cross spoked: 12mm quick release with
Schwalbe Big Ben Plus tires.
- mudquards: 2mm stainless steel
- hitch US: stainless steel
- bottom panel (option): heavy duty flight panel, light weight, polypropelen board with toughened surface
- weight bottom panel 120_60: 2,9kg
- weight bottom panel 160_60: 3,8kg
- weight mudguards: 2,5kg
- max load: 150kg
- max tongue load: 30kg
